In-house atomization technology
Adjust the alloy and particle-size distribution at the powder-production stage to suit different forming and sintering conditions.
STAINLESS STEEL POWDER SOLUTIONS
Stainless Steel Powder Manufacturer
Tongcheng is a stainless steel powder solutions provider with government project support, in-house atomization technology and capabilities spanning alloy formulation through customer application validation.
In-house atomization technologyAlloy formulation aligned with powder productionFour core gradesParticle size data available for reviewCustomer application validationLinking powder, sintering and part performance
01alloy formulationDefine materials from part targets
02in-house atomizationAdjust the powder from the process side
03particle size controlD10 / D50 / D90 Distribution management
04Application supportForming, sintering and part properties
05Batch managementTraceable from production to packaging
17-4PH stainless steel powder •440C High hardness powder •439 ferritic stainless steel powder •17-4+3Cu Project-based materials •Fine powder for MIM •D10 / D50 / D90 particle size Control •In-house atomization technology •Customer application validation •
WHY TONGCHENGFrom metal powder to the finished part
From metal powder to the finished part
An integrated engineering workflow
Tongcheng integrates alloy development, powder atomization, sieving and classification, powder testing, forming and sintering to support precision-parts manufacturers from material selection through series production.
Learn about Tongcheng Powder →Material and process integration
Technical support covers particle size, feedstock and forming through debinding, sintering and heat treatment, always with the customer’s part in view.
Core powder grades
We supply 17-4PH, 17-4+3Cu, 440C, 439 and other stainless steel powders, with custom alloy and particle-size options.

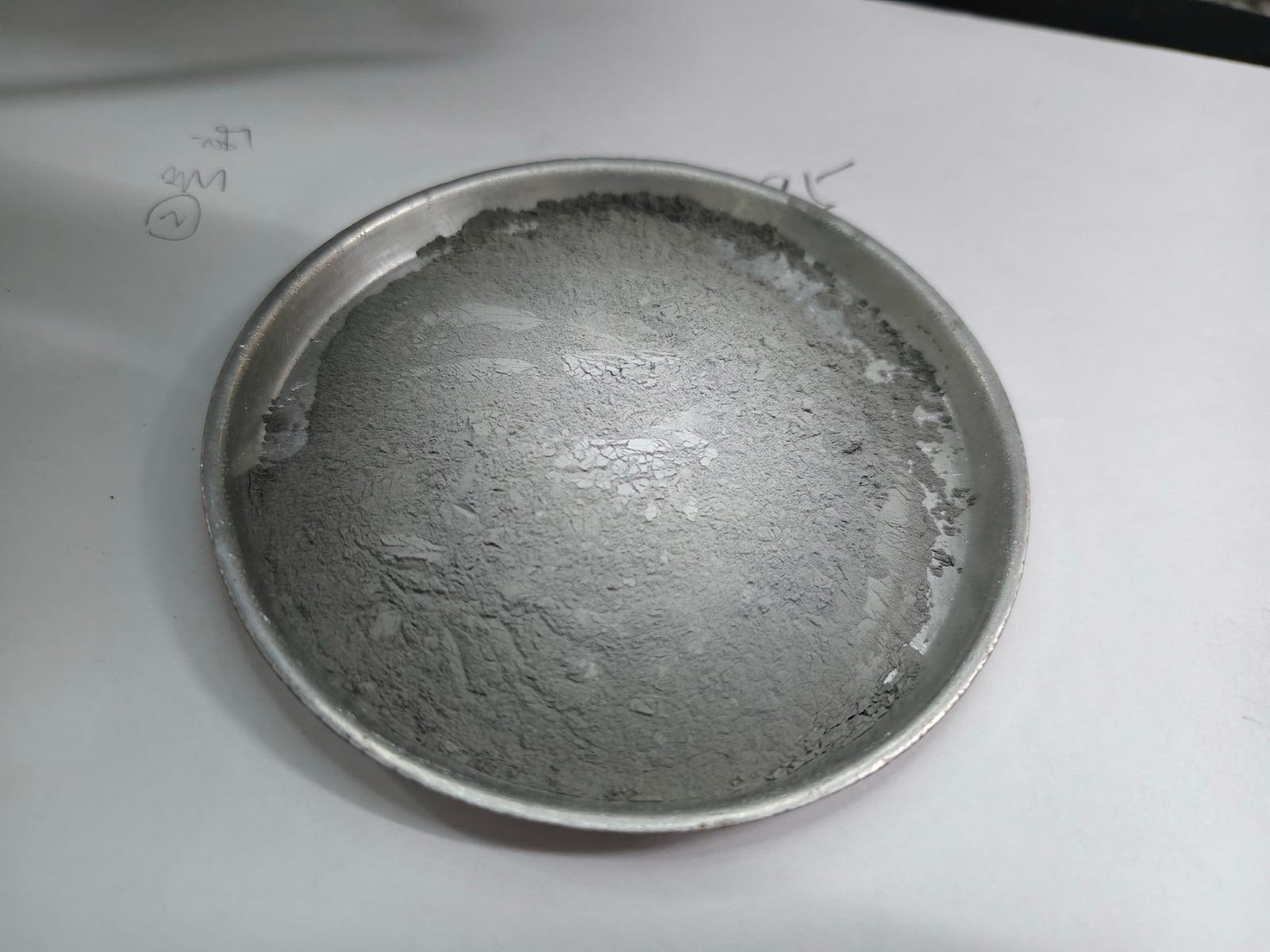

STAINLESS STEEL POWDERS
Stainless steel powder grades
Select a material by strength, hardness, wear and corrosion resistance, thermal cycling and forming process—or request a custom alloy and particle size for the part.
Precipitation hardening type
17-4PH
A balanced choice for strength, corrosion resistance and heat-treatment response.
D50 8.706 μm Test record:↗
Martensitic
440C
For high hardness, wear resistance and precision cutting tools.
D50 8.223 μm Test record:↗
Ferritic
439
Balances corrosion resistance, thermal cycling and material cost.
D50 9.896 μm Test record:↗
project materials
17-4+3Cu
Defined case by case from the target composition, manufacturing process and required part properties.
D50 9.150 μm Test record:↗
Distribution basis: volume. The particle size values above correspond to the test record for the date shown; the particle size for supply is confirmed for each project.
Powder Finder
Find powder by properties and application
Use the required properties and application to shortlist grades, then use the manufacturing process to define the powder and part checks needed for validation.

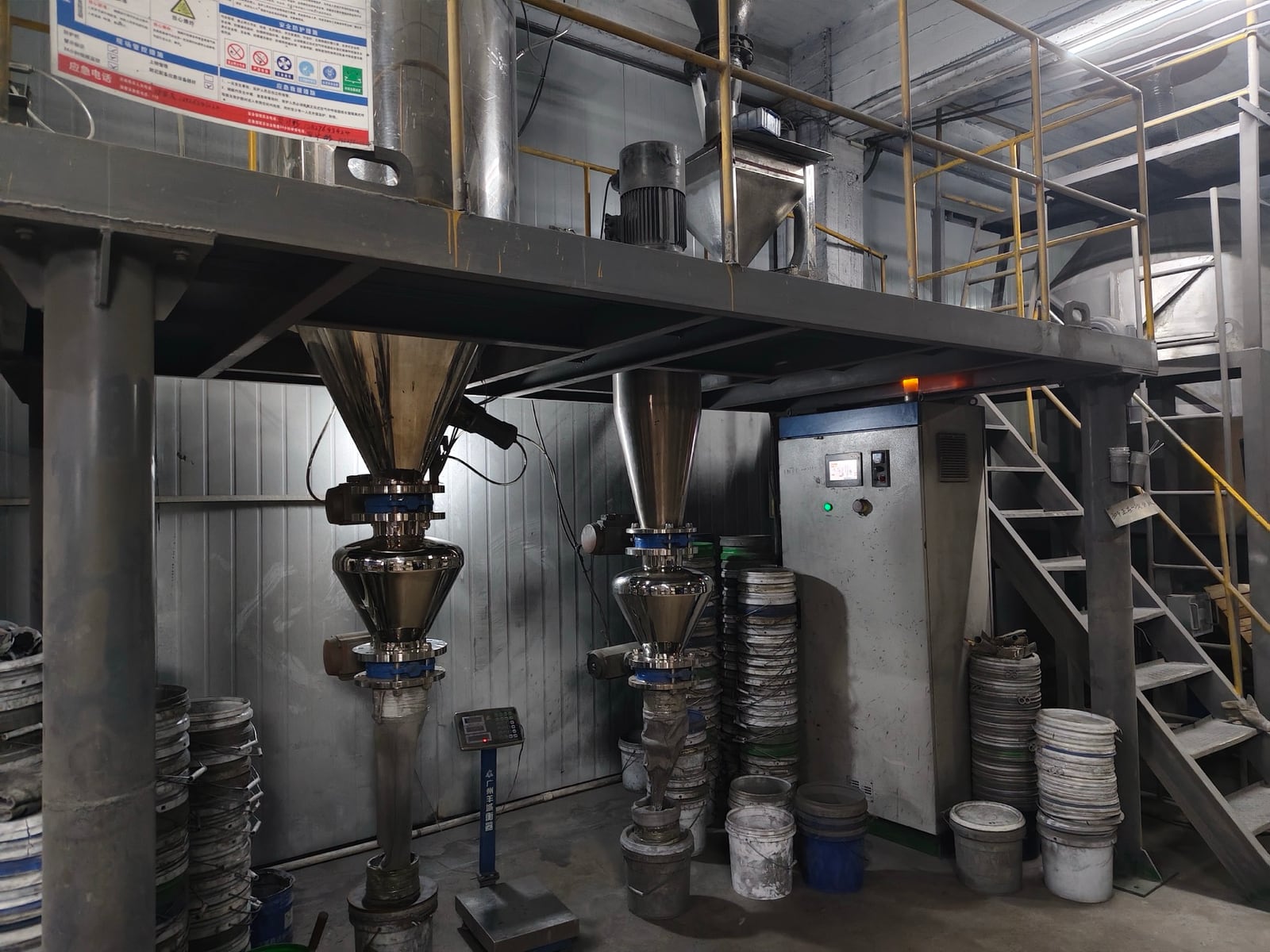

Factory equipmentPowder collection, classification and process control
POWDER MANUFACTURING01 02 03 04 05 View the complete technical roadmap
An integrated stainless steel powder production chain
Alloy formulation and raw-material preparation
Define the alloy direction from the target grade, required part properties and manufacturing process.
Melting and in-house atomization
Produce stainless steel alloy powder using an in-house atomization process.

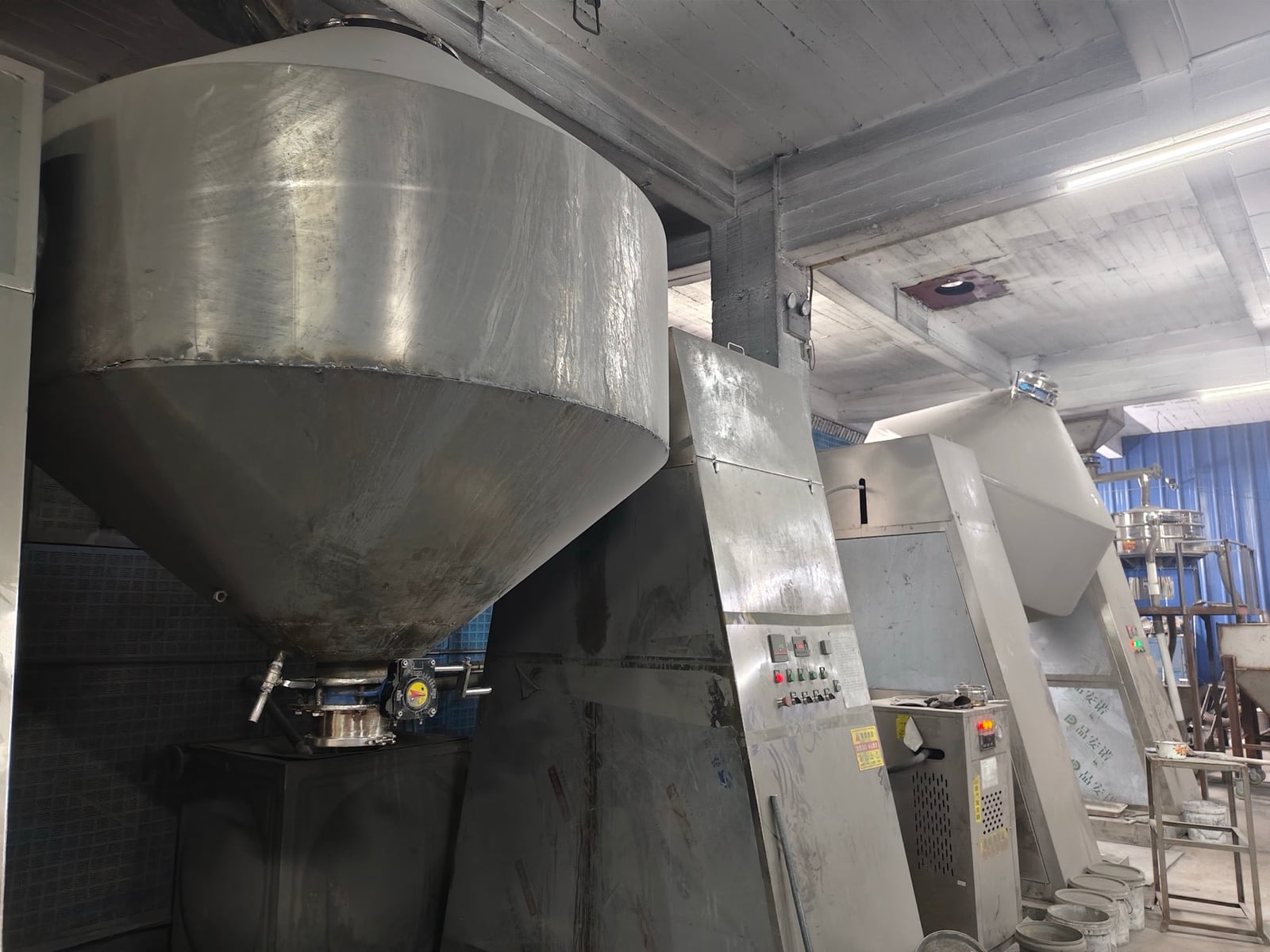

Collection, sieving and blending
Control the coarse-to-fine balance and particle-size distribution for different forming processes.
Powder testing and quality control
Analyze particle size and manage production, sampling, packaging and batch identification.
Forming and sintering support
Optimize the material solution around MIM or press-and-sinter processing, heat treatment and final part properties.

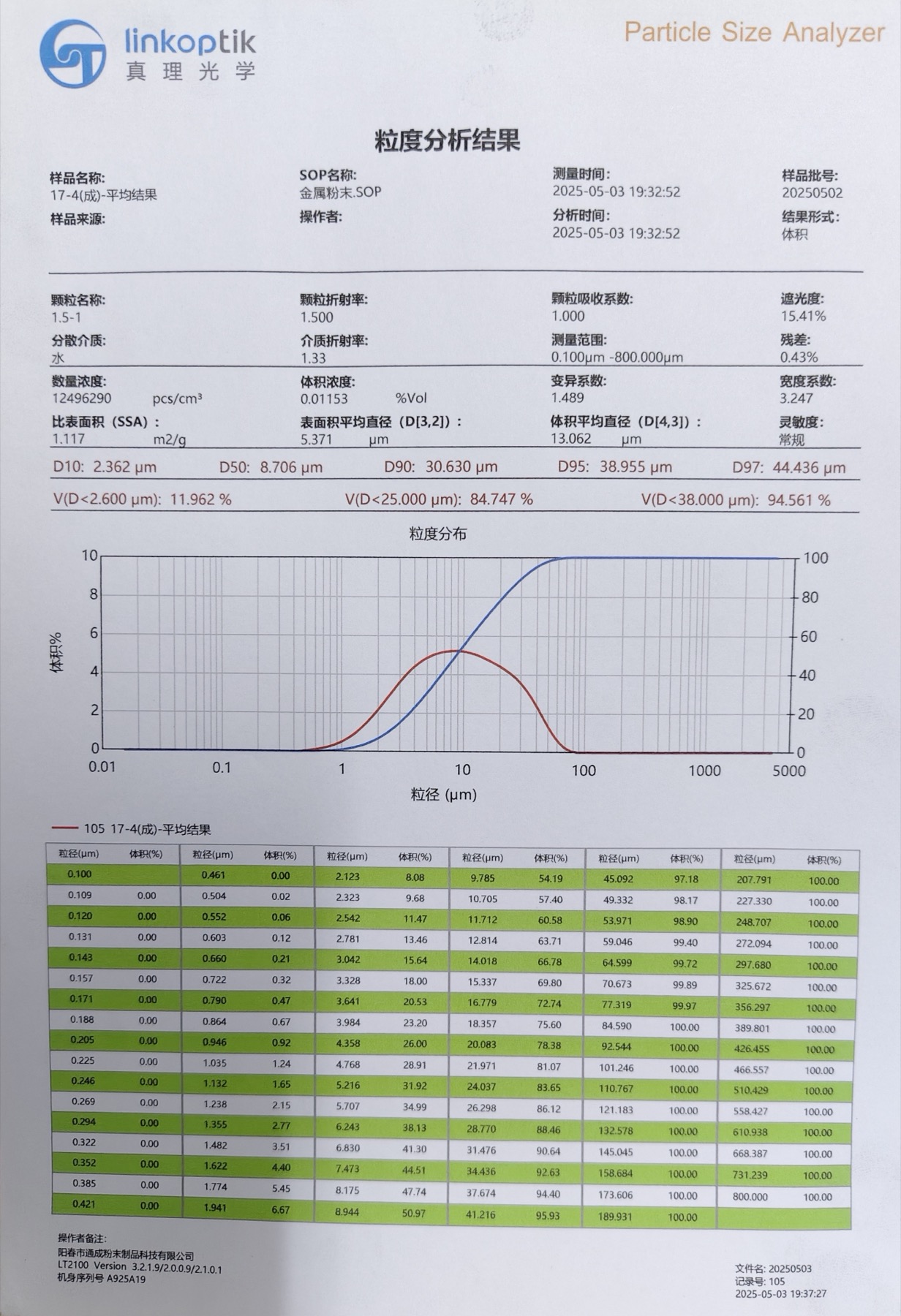

PARTICLE SIZE DATA
Particle-size data for four stainless steel powders
Compare D10, D50 and D90 values for 17-4PH, 17-4+3Cu, 440C and 439 to review their particle-size distributions.
Precipitation hardening type
17-4PH
Test record:D508.706μm
→project materials
17-4+3Cu
Test record:D509.15μm
→Martensitic
440C
Test record:D508.223μm
→Ferritic
439
Test record:D509.896μm
→Understanding D10 / D50 / D90 and particle size analysisDistribution basis: volume. The particle size values above correspond to the test record for the date shown; the particle size for supply is confirmed for each project.
APPLICATION LIBRARY
Material solutions for precision stainless steel parts
Match alloy and particle size to the part function, manufacturing process and failure mode.
01↗02↗03↗04↗05↗06↗07↗08↗09↗10↗
Scissors and shearing components
Cutting edge, hardness, toughness and heat treatment
Nail clippers and personal-care tools
Complex forming, fit and surface finish
Precision industrial tools
Hardness, wear resistance and dimensional accuracy
Consumer-electronics structural parts
Thin walls, appearance and lot-to-lot consistency
Medical-instrument components
Corrosion resistance, cleanliness and precision forming
Automotive precision components
Heat resistance, corrosion resistance and batch consistency
Blades and cutting components
Hardness, cutting edge and wear life
Watch and miniature structural components
Complex forming, appearance and assembly
Locks and hinges
Strength, wear resistance and cycle life
Valve and pump components
Process media, sealing, corrosion and wear
ENGINEERED SOLUTIONS
Powder solutions built around your part and process
Tongcheng supports material selection, filling behavior, sintering shrinkage, hardness, wear resistance and production consistency through alloy and particle-size engineering.
Enter the solution centerParticle-size distribution is unsuitable
Flow, filling and the sintering window are difficult to balance
Incorrect material choice
Hardness, toughness, corrosion resistance and cost pull in different directions
Stable in trials, variable in series production
Improve consistency through powder production, particle-size control and batch management
Standard grades do not meet the requirement
Develop an alloy formulation and particle-size plan around the target properties
APPLICATION SCENARIOS
How Tongcheng approaches typical project challenges
Typical part targets, common challenges, material directions and validation steps show how each project can be approached.
01TYPICAL PROJECT
440C Scissor blade
Hardness, wear resistance, thin-edge filling and sintering distortion
View project plan →02TYPICAL PROJECT17-4PH thin-wall structural parts
Filling, shrinkage, dimensions and properties after aging
View project plan →03TYPICAL PROJECTMIM sintering shrinkage
Trace the issue from powder and feedstock through injection and the furnace cycle
View project plan →04TYPICAL PROJECTPowder batch consistency
Link production lot numbers and test results to the customer’s part results
View project plan →Typical project scenarios are used to demonstrate engineering methods and are not directed to a specific client.View all application cases and project plans →
REAL MANUFACTURING

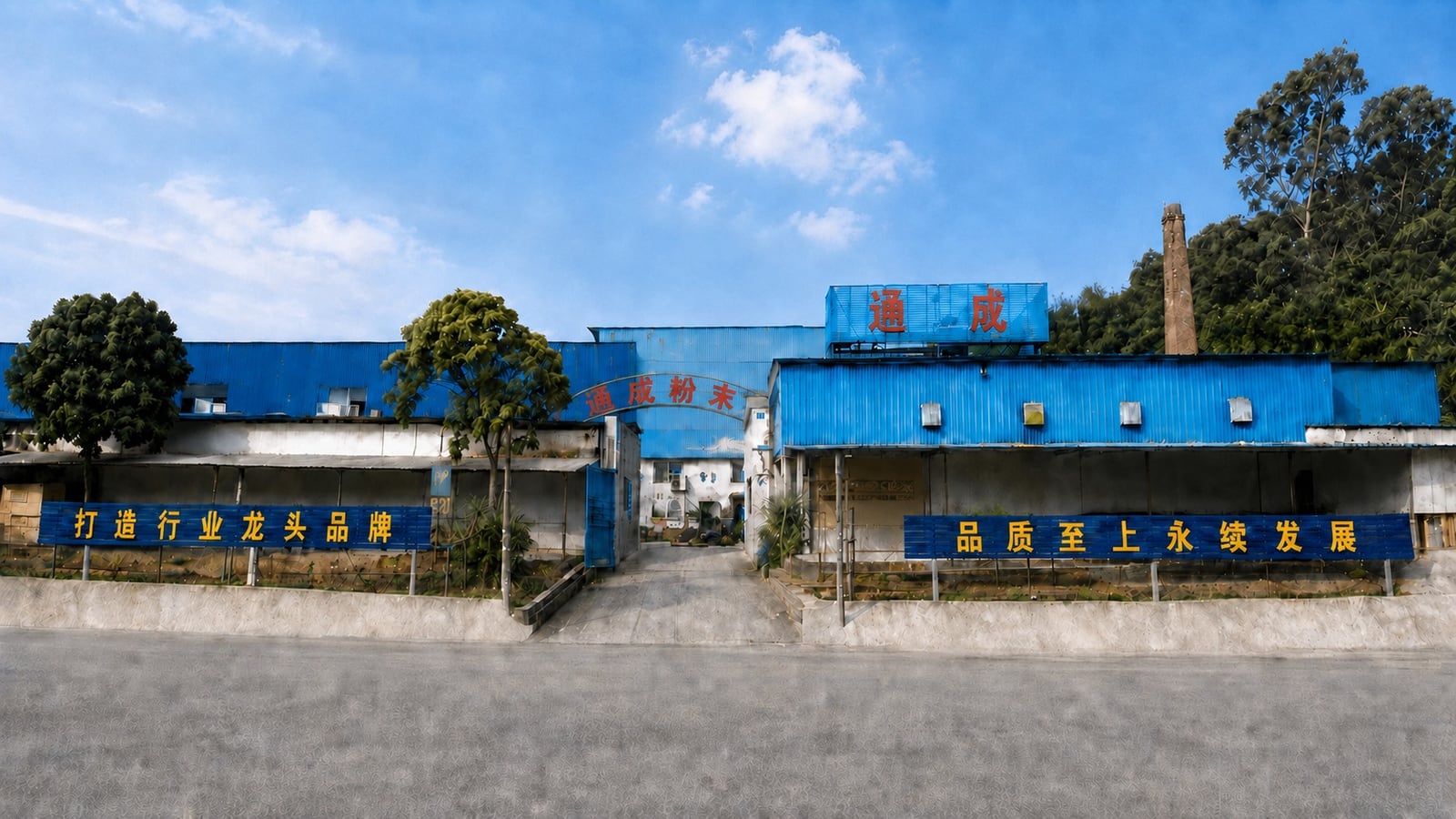

Stainless steel powder manufacturing in Yangchun, Guangdong
The factory is located at No. 1, Gangqiao Industrial Park, Gangmei Town, Yangchun, Guangdong. Its capabilities include alloy powder production, sieving and blending, powder packaging, and application support for injection molding and sintering.
- Alloy development and in-house atomization
- sieving, blending and powder packaging
- MIM Injection and sintering equipment
- Particle size analysis and batch management
FROM INQUIRY TO SUPPLY
From material requirements to volume supply
Engineering and commercial teams coordinate material selection, project evaluation, trial production and delivery.
Define requirements
Grade, particle size, process, part, target and required volume
Recommended plan
Choose a standard grade, custom alloy or particle-size range
Project evaluation and trial production
Carry out powder testing, forming, sintering and performance evaluation
Bulk supply
Confirm quantity, packaging, lead time and batch controls
ENGINEERING KNOWLEDGE
View technical resources →Stainless steel powder selection and engineering knowledge
TECHNICAL INQUIRY
Discuss stainless steel powder and custom solutions
Share the material, process and required volume. Contact Mr. Cai Jibin on WhatsApp or send the project details by email.
- Target grade and particle size range
- Forming process and parts usage
- Estimated monthly or annual usage
- Delivery country and time requirements
DIRECT CONTACTCai Jibin · +86 138 2764 3424lantianyewu@163.comNo. 1, Gangqiao Industrial Park, Gangmei Town, Yangchun City, Guangdong Province
